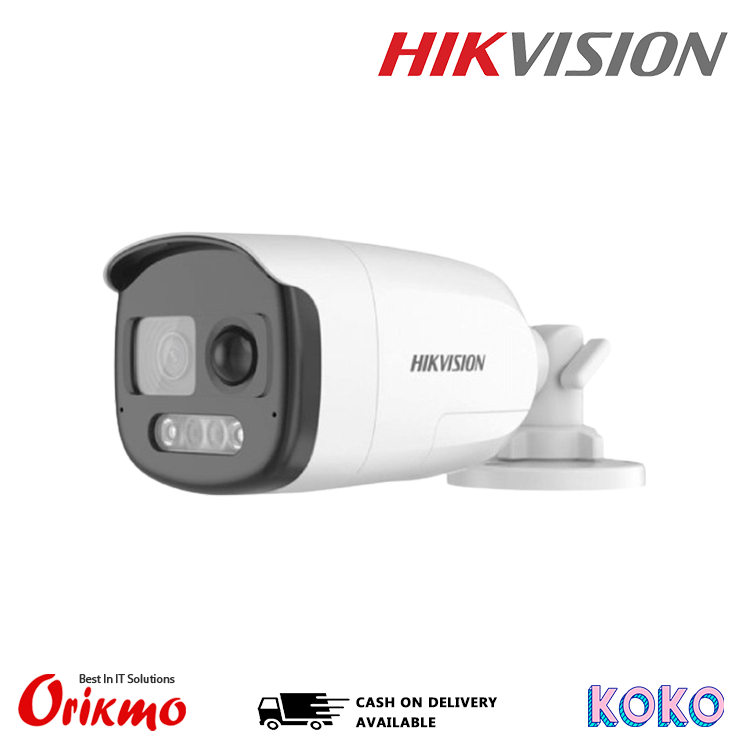

HIKVISION DS-2CE16DOT-LPFS 2.0MP HD DUAL LIGHT AUDIO CAMERA

Camera

• Image Sensor: 2 MP CMOS
• Max. Resolution: 1920 (H) × 1080 (V)
• Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
• Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
• Day & Night ICR
• Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 90°, Rotation: 0 to 360°
• Signal System PAL/NTSC

Lens

• Lens Type: 2.8 mm, 3.6 mm fixed focal lens
• Focal Length & FOV: 2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118° / 3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°
• Lens Mount: M12

Microphone

• Pickup Distance: In a radius of up to 5 m
• Amount: 1

Illuminator

• Supplement: Light Type Smart, IR, White Light
• Supplement Light Range: IR Up to 25 m / White Light Up to 20 m


• Image Settings: Brightness, Sharpness, Smart IR
• Frame Rate: TVI: 1080P @ 30 fps, 1080P @ 25 fps / AHD: 1080P @ 30 fps, 1080P @ 25 fps / CVI: 1080P @ 30 fps, 1080P @ 25 fps / CVBS: PAL/NTSC
• Day/Night Mode: Auto/Color
• Wide Dynamic Range (WDR): Digital WDR
• Image Enhancement: DWDR/BLC/HLC/Global
• White Balance]: Auto/Manual
• AGC: Yes

Interface

• Video Output: Switchable TVI/AHD/CVI/CVBS
