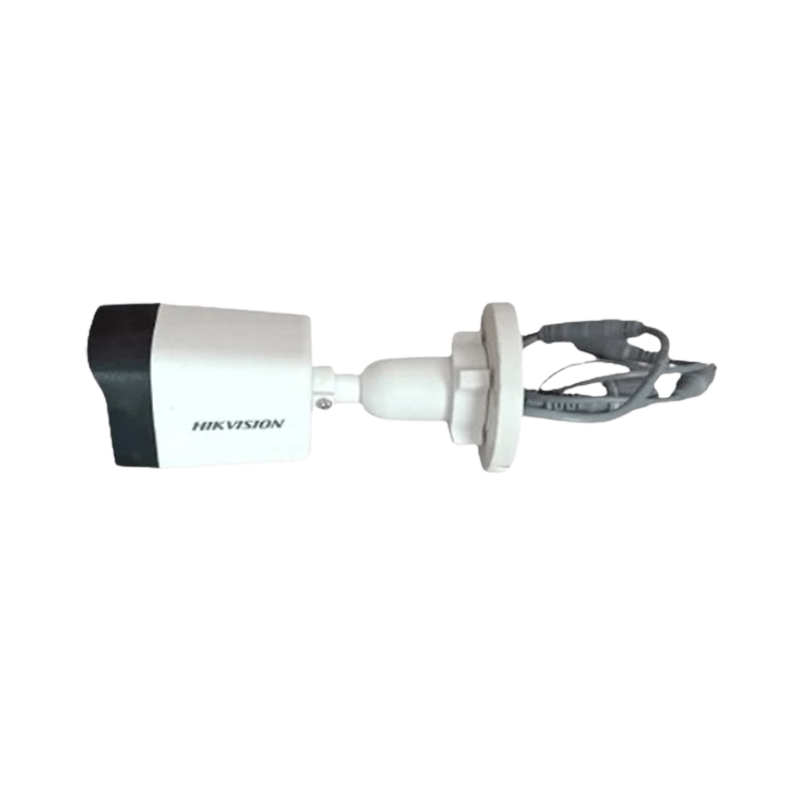

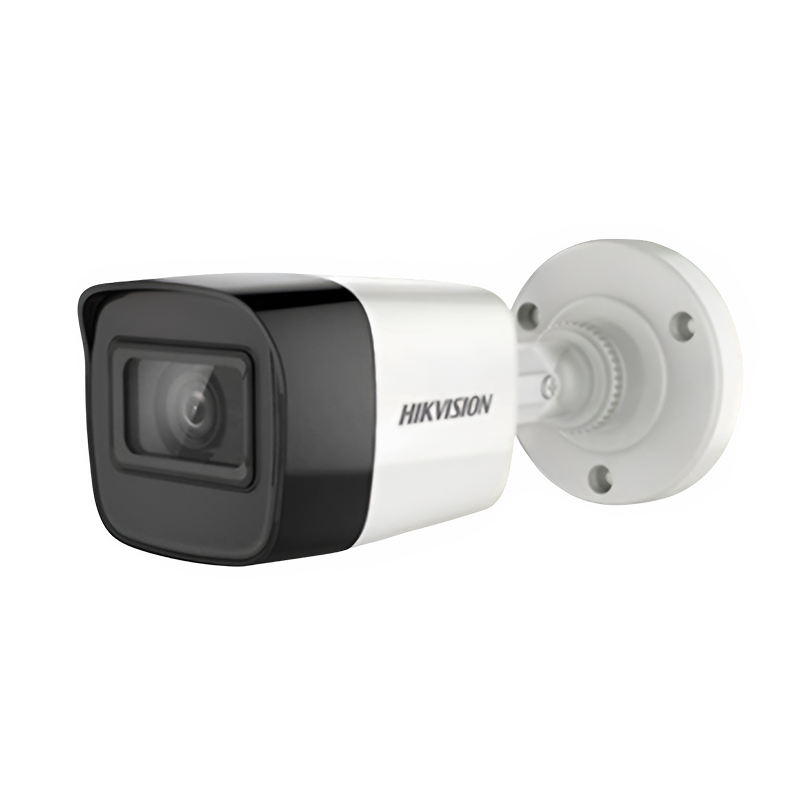

HIKVISION DS-2CE16D0T-EXIPF FIXED BULLET CAMERA
- AVAILABILITY:
- SKU: 3745
- CATEGORY: CCTV CAMERS,ANALOG,OUTDOOR
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm, 3.6 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
2 YEAR WARRANTY
High quality imaging with 2 MP, 1920 × 1080 resolution
2.8 mm, 3.6 mm fixed lens
Up to 20 m IR distance for bright night imaging
One port for four switchable signals (TVI/AHD/CVI/CVBS)
Water and dust resistant (IP67)
Camera
Model DS-2CE16D0T-EXIPF
Product Name 2MP Outdoor EXIR Fixed Mini Bullet Camera
Image Sensor 2 MP CMOS
Signal System PAL/NTSC
Resolution 1920 (H) × 1080 (V)
Frame Rate
TVI: 1080p@25fps/30fps
AHD: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
CVBS: PAL/NTSC
Min. Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm Fixed Lens
Field of View
2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
3.6 mm, horizontal FOV: 76.9°, vertical FOV: 40.6°, diagonal FOV: 92.0°
Lens Mount M12
Day ＆ Night IR Cut Filter
WDR (Wide Dynamic Range) Digital WDR
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Image Mode STD/HIGH-SAT
AGC Yes
Day/Night Mode Auto/Color/BW (Black and White)
White Balance Auto
AE (Auto Exposure) Mode DWDR,BLC,Global
Noise Reduction 2D DNR
Language English
Function Brightness,Mirror,Smart IR,Sharpness
Interface
Video Output Switchable TVI/AHD/CVI/CVBS
General
Operating Conditions -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
Power Supply 12 VDC ± 25%
Consumption Max. 3.3 W
Protection Level IP67
Material Plastic
IR Range Up to 20 m
Communication HIKVISION-C
Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.465" × 2.389" 2.278")
Weight Approx. 145 g (0.32 lb.
