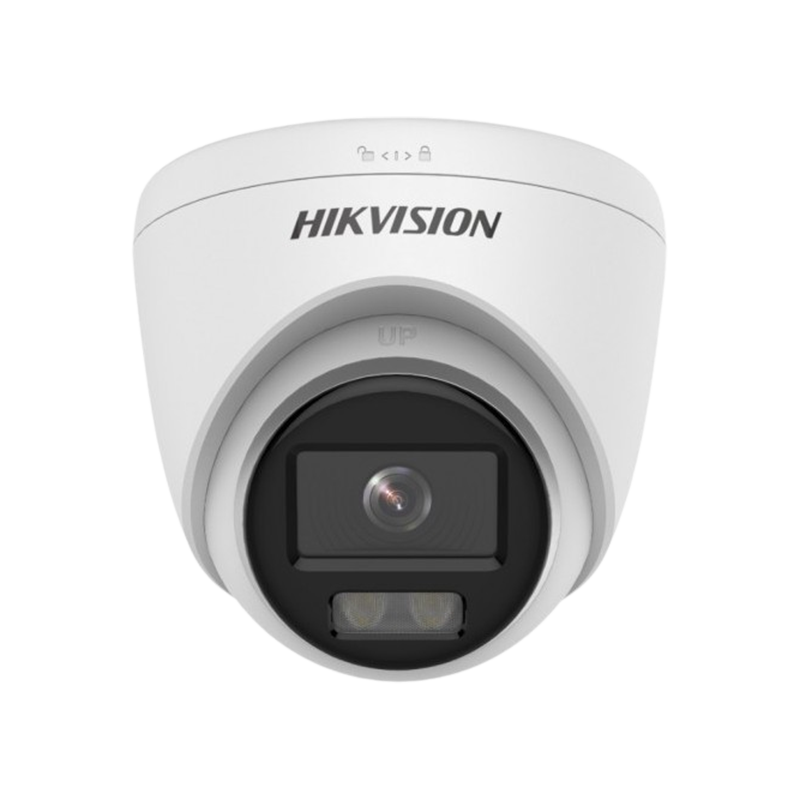

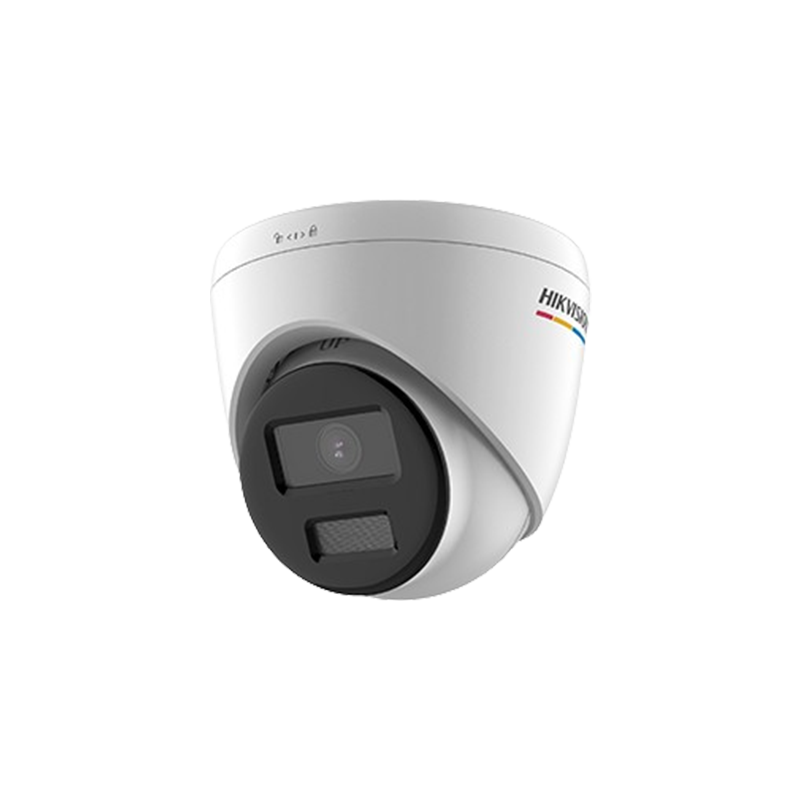

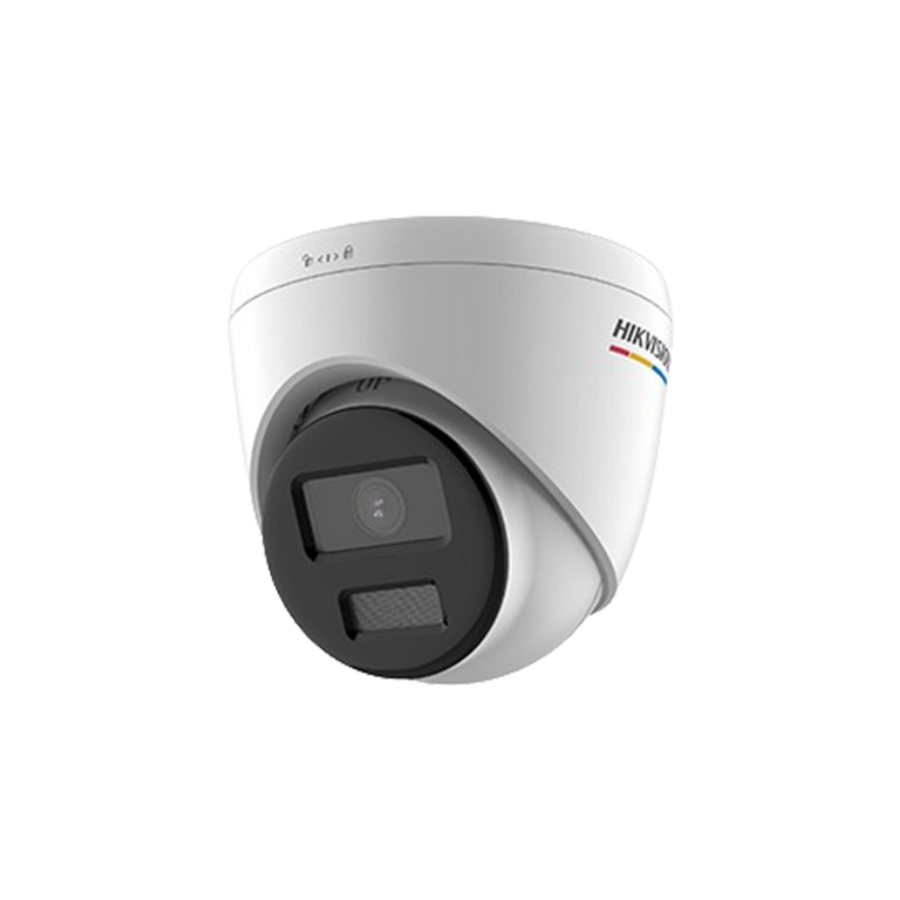

HIKVISION DS-2CD1347G0-L IP COLOR CAMERA
- AVAILABILITY:
- SKU: 3499
- CATEGORY: CCTV CAMERS,IP CAMERA,OUTDOOR CAMERA
- High quality imaging with 4 MP resolution
- Excellent low-light performance
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
- 24/7 colorful imaging
2 YEAR WARRANTY
High quality imaging with 4 MP resolution
Excellent low-light performance
Efficient H.265+ compression technology
Water and dust resistant (IP67)
24/7 colorful imaging
- Camera
- Image Sensor1/2.7" Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.001 Lux @ (F1.0, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Angle AdjustmentPan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
- Lens
- Focal Length & FOV
2.8 mm, horizontal FOV 102°, vertical FOV 54°, diagonal FOV 121°
4 mm, horizontal FOV 80°, vertical FOV 43°, diagonal FOV 95°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- Depth of Field
2.8 mm: 3.1 m to ∞
4 mm: 3.6 m to ∞
- Illuminator
- Supplement Light TypeWhite
- Supplement Light RangeUp to 30 m
- Smart Supplement LightYes
- Video
- Main Stream
50Hz: 20 fps (2560 × 1440)
25 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (2560 × 1440)
30 fps (2304 × 1296, 1920 × 1080, 1280 × 720)
- Sub-Stream
50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
* Note: The frame rate of the sub-stream cannot exceed the maximum frame rate of the current main stream.
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseLine Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Region of Interest (ROI)1 fixed region for main stream
- Network
- ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (PROFILE S), ISAPI, SDK
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF
- ClientiVMS-4200, Hik-Connect, Hik-Central
- Web Browser
Plug-in required live view: IE 10+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Local service: Chrome 57.0+, Firefox 52.0+
- Image
- Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Day/Night SwitchDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC, HLC, 3D DNR
- Interface
- Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Event
- Basic EventMotion detection, exception (illegal login)
- LinkageUpload to FTP, notify surveillance center, send email, trigger recording, trigger capture
- General
- Power
12 VDC ± 25%, 0.37 A, max. 4.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection
PoE (802.3af, Type 1 Class 3, 36 V to 57 V), 0.13 A to 0.08 A, max. 4.5 W
- DimensionØ110 × 100.8 mm (Ø4.3" × 4.0")
- Package Dimension150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
- WeightApprox. 350 g (0.8 lb.)
- With Package WeightApprox. 556 g (1.2 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language
2 languages
English and Ukraine
- General FunctionAnti-flicker, heartbeat, mirror, privacy masks, password reset via e-mail
