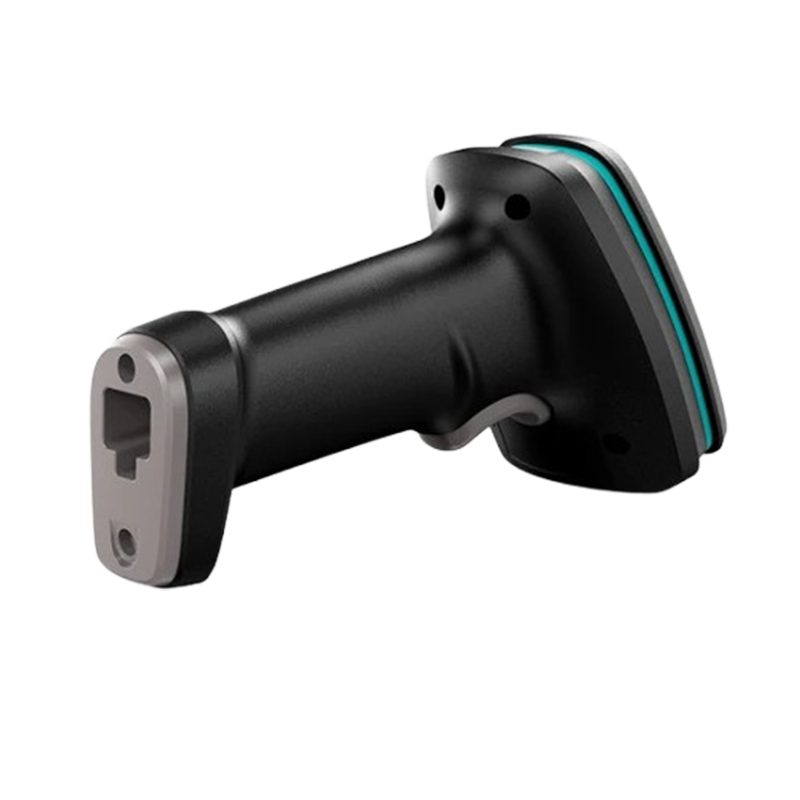

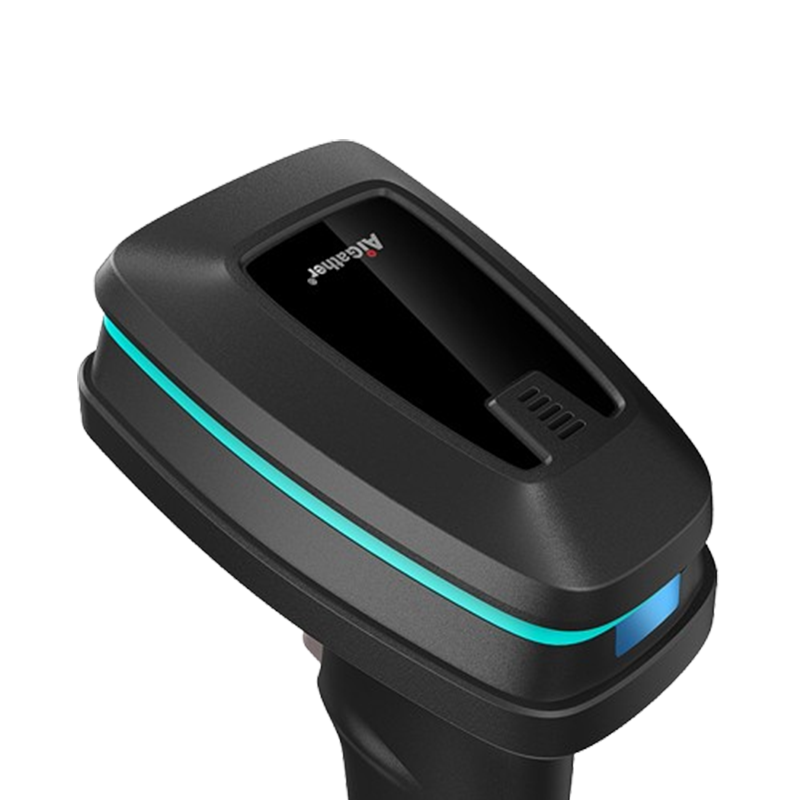

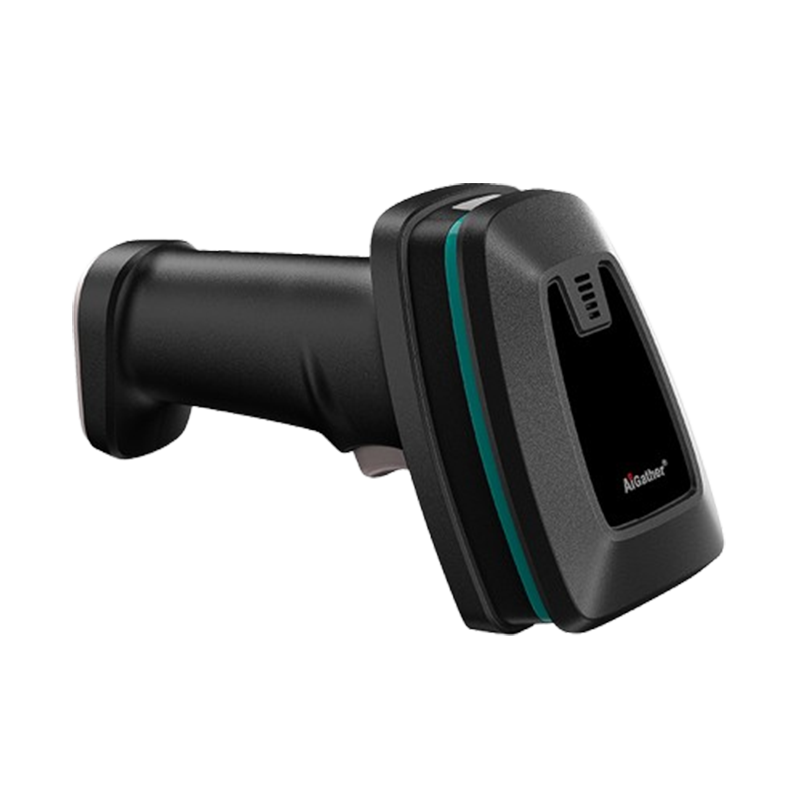

AiGATHER A-9520SR 2D WIRED BARCODE SCANNER
- AVAILABILITY:
- SKU: 1163
- CATEGORY: POS ITEM,BARCODE SCANNER
Rs. 17,400.00Rs. 17,000.00
- Light Source: LED White light
- Image Sensor: 1280*800 pixels (Global Shutter)
- CPU: 1.2G Dual core
- Resolution: 3mils
- Interfaces: RS-232, USB HID, USB COM, HID POS
- Drop Resistance: 1.2m
1 YEAR WARRANTY
Light Source: LED White light
Image Sensor: 1280*800 pixels (Global Shutter)
CPU: 1.2G Dual core
Resolution: 3mils
Interfaces: RS-232, USB HID, USB COM, HID POS
Drop Resistance: 1.2m
Performance Parameters:
- Aiming Light: Green Dot
- Minimum Print Contrast: 20% Reflection Difference
- Motion Tolerance: 2M/S
- Image Field of View: Horizontal: 50°, Vertical: 38°
- Reading Angle: Pitch: 0-360°, Roll: ±60°, Skew: ±60°
- Decoding Capability: 1D and 2D barcodes, including GS1 DataBar, QR Code, Data Matrix, PDF417, etc.
- Typical Depth of Field: Varies based on barcode type and density
Electrical Parameters:
- Current: Working: 80 mA, Standby: 130 mA
- Input Voltage: 5 VDC (±10%)
Environmental Parameters:
- ESD Protection: 8 kV
- Temperature: Working: -10 to 50 °C, Storage: -20 to 65 °C
- Humidity: 5 - 95% (non-condensing)
- Ambient Light: Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux
Physical Dimensions:
- Size: 1726787mm
