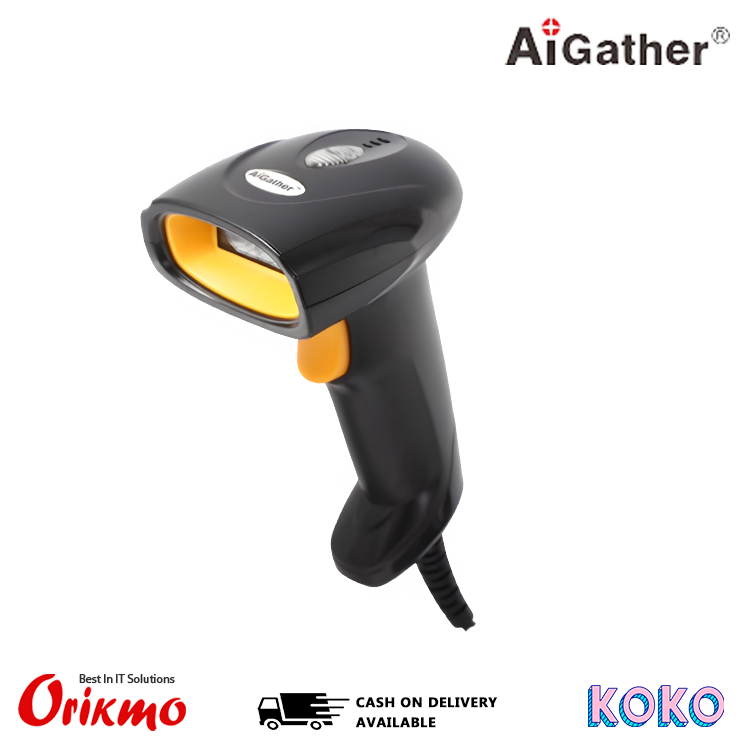

AiGATHER A-9520N 2D WIRED BARCODE SCANNER
- AVAILABILITY:
- SKU: 1178
- CATEGORY: POS ITEM,BARCODE SCANNER
- Scanner Type: 2D Imager Barcode Scanner
- Connectivity: Wired (USB)
- Scan Rate: 150 scans per second
- Supported Barcodes: 1D and 2D barcodes (QR Code, DataMatrix, UPC, EAN, Code 128, etc.)
- Scan Distance: Up to 10-30 cm (depending on barcode type)
- Voltage: 5V (USB-powered).
- Operating Temperature: 0°C to 50°C
- Protection: IP54 (dustproof and splash-proof)
- Durability: Drop-resistant up to 1.5 meters
- Interface: USB (plug and play)
- Weight: Approximately 200 grams
1 YEAR WARRANTY
Scanner Type: 2D Imager Barcode Scanner
Connectivity: Wired (USB)
Scan Rate: 150 scans per second
Supported Barcodes: 1D and 2D barcodes (QR Code, DataMatrix, UPC, EAN, Code 128, etc.)
Scan Distance: Up to 10-30 cm (depending on barcode type)
Voltage: 5V (USB-powered).
Operating Temperature: 0°C to 50°C
Protection: IP54 (dustproof and splash-proof)
Durability: Drop-resistant up to 1.5 meters
Interface: USB (plug and play)
Weight: Approximately 200 grams
Performance Parameter | |
Light Source | LED White light |
Aiming Light | Green Dot |
Image Sensor | 800*600 pixels |
Imaging Speed | 60FPS |
CPU | 1.2G Dual core |
Resolution(maximum) | 3mil |
Minimum Print Contrast | 20% Reflection Difference |
Image Field of View | D54°/H45°/V36° |
Reading Angle | Pitch: ±65°; Roll(Tilt): 0-360°; Skew (Yaw): ±60° |
Decoding Capability | 1D: All standard 1D codes including GS1 DataBar™ linear code can be automatically distinguished and decoded. 2D: Aztec Code; Data Matrix; MaxiCode; QRCode; HANXIN; MicroQR Code Stack code: GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; GS1 DataBar Composite; MicroPDF417; PDF417. |
Reading Indicators | LED light&Buzzer(adjustable tone and volume） |
Typical depth of Field | Precision Barcode Depth of Field 3.34mil CODE128 30mm—60mm 5mil CODE128 30mm—100mm 3.34mil EAN-13 35mm—60mm 5mil EAN-13 30mm—100mm 13.34mil EAN-13 30mm—230mm 5mil PDF417 30mm—100mm 10mil QR 30mm—150mm 10mil DM 20mm—125mm (The minimum depth of field is determined by the barcode length and scanning angle. It depends on the print resolution, contrast and ambient light.) |
Electrical Parameter | |
Current | Working current(Standard): |
Input Voltage | 5 VDC (+/- 5%)/500mA |
Environmental Parameter | |
ESD protection | Touch discharge: 8 kV; Air discharge: 15kV |
Drop resistance | Withstands repeated drops from 1.2m/4.0 ft onto a concrete surface. |
Temperature | Working: -20 to 40 °C Storage/Transport: -40 to 65 °C |
Humidity(non-condensing) | 5 - 95% |
Ambient light | Indoor: 0 to 6,000 lux; Outdoor: 0 to 100,000 lux |
