RED LINK RL-12V-H 30A CCTV POWER SUPPLY
- AVAILABILITY:
- SKU: 3162
- CATEGORY: CCTV ACCESSORIES,DVR & CAMER POWER SUPPLY
The RED LINK RL-12V-H 30A CCTV Power Supply is a powerful and reliable power solution designed for large-scale CCTV surveillance systems. Providing a stable 12V DC output with 30A capacity, it is capable of powering multiple security cameras and related devices efficiently. Built with advanced protection features including overload, overvoltage, overcurrent, and short-circuit protection, it ensures safe and continuous operation. The durable metal enclosure with efficient cooling design provides excellent heat management and long-term reliability, making the RL-12V-H 30A an ideal choice for commercial buildings, offices, and professional CCTV installations.
1 YEAR WARRANTY
⚡ 12V DC 30A Power Output – Delivers stable and high-capacity power for large-scale CCTV surveillance systems.
📹 Designed for CCTV Applications – Ideal for powering multiple analog and IP security cameras from a single power supply.
🔌 Multiple Power Output Channels – Supports simultaneous connection of numerous CCTV cameras and accessories.
🛡️ Overload Protection – Protects the power supply and connected devices from excessive current.
⚠️ Short Circuit Protection – Prevents damage caused by short circuits for enhanced system safety.
🌡️ Over Voltage Protection – Ensures stable voltage output for reliable camera performance.
❄️ Efficient Cooling System – Ventilated metal enclosure provides excellent heat dissipation during continuous operation.
🏗️ Heavy-Duty Metal Housing – Durable construction designed for long-term professional use.
🔧 Easy Terminal Connections – Screw terminal outputs allow quick, secure, and organized wiring.
⚙️ 24/7 Continuous Operation – Built for reliable performance in demanding surveillance environments.
🏢 Ideal for Large CCTV Installations – Perfect for offices, factories, warehouses, hotels, schools, shopping centers, and commercial buildings.
🛡️ Reliable & Stable Power Supply – Ensures uninterrupted power delivery for consistent CCTV system performance.
| Brand | RED LINK |
| Model | RL-12V-H 30A |
| Product Type | CCTV Switching Power Supply |
| Output Voltage | DC 12V |
| Output Current | 30A |
| Rated Output Power | 360W |
| Input Voltage | AC 100V–265V |
| Input Frequency | 50/60Hz |
| Power Supply Type | Regulated Switching Mode Power Supply (SMPS) |
| Output Type | Single Output |
| Voltage Adjustment | Adjustable DC Output Voltage |
| Efficiency | High Efficiency Design |
| Protection Features | Short Circuit Protection, Overload Protection, Over Voltage Protection |
| Cooling System | Built-in Cooling Fan |
| Soft Start Function | Supported |
| EMI Filter | Built-in EMI Filter |
| LED Indicator | Power ON LED Indicator |
| Full Load Test | 100% Full Load Burning Test |
| Housing Material | Metal Enclosure |
| Installation | Indoor Surface Mount |
| Operating Temperature | 0°C to +40°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 0%–95% RH (Non-Condensing) |
| Applications | CCTV Camera Systems, DVR/NVR Systems, Access Control, Security Devices, LED Lighting |
Related Products

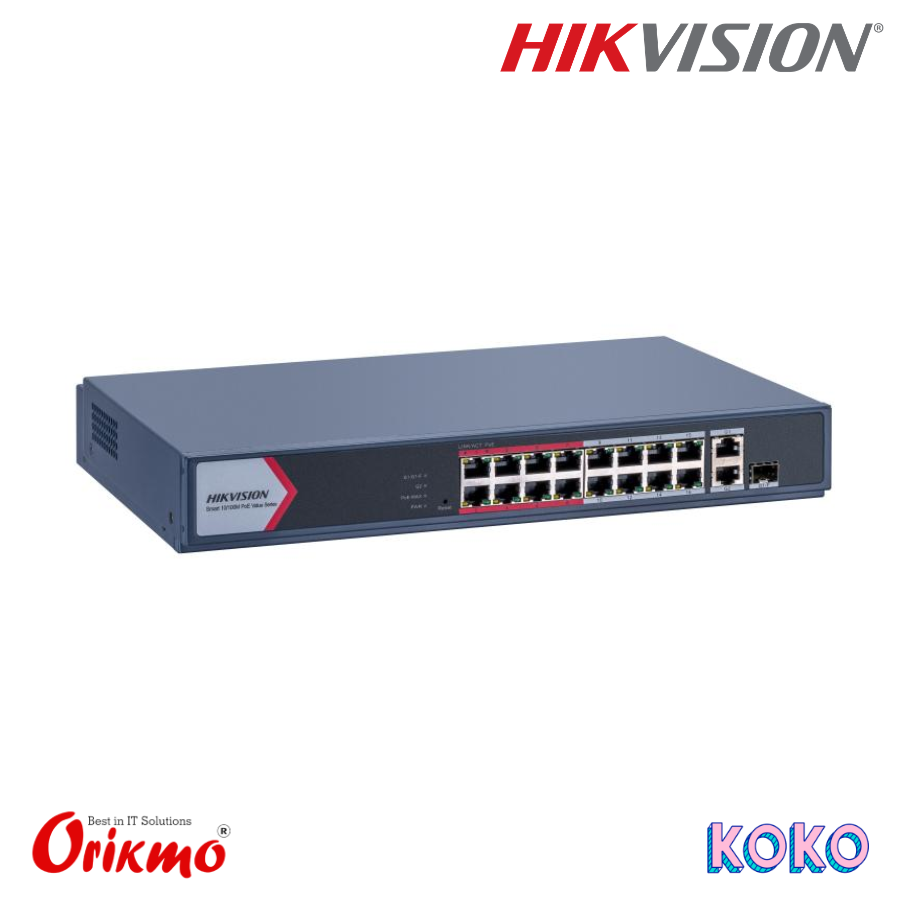

HIKVISION DS-3E1318P-EI/M 16 PORT ETHERNET SMART POE SWITCH
