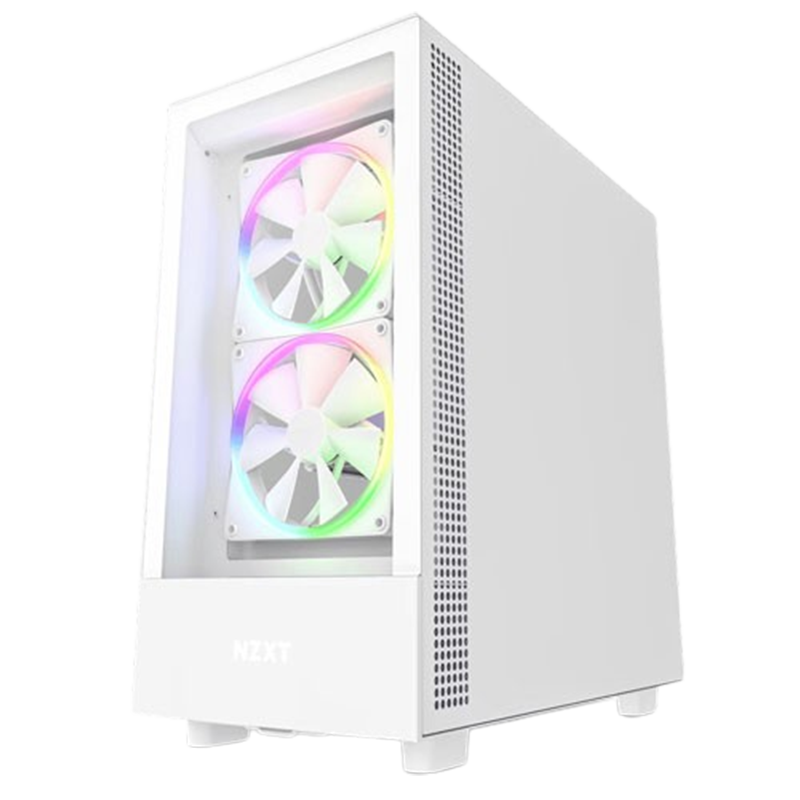

NZXT H5 ELITE WHITE ATX MID TOWER CASE CC-H51EW-01
- AVAILABILITY:
- SKU: 0001530
- CATEGORY: PC ACCESSORIES,CASING
- Brand:NZXT
- Part Number:CC-H51EW-01
- Case Type:ATX - Mid Tower
- Side Panel:Tempered Glass
- Lighting:RGB
2 YEAR WARRANTY
Type: TX Mid-Tower
Material: Steel, Tempered Glass
Motherboard Support: Mini-ITX, Micro-ATX, ATX
GPU Clearance: Up to 365 mm
CPU Cooler Clearance: Up to 165 mm
Front I/O:1x USB-A, 1x USB-C, 1x Audio Jack
Cooling: -
- Front: 2x 140mm RGB (included)
- Top: 2x 120mm (optional)
- Rear: 1x 120mm (optional)
- Bottom: 1x 120mm (included, angled for GPU)
Radiator Support:Front (280mm), Top (240mm), Rear (120mm)
Drive Bays:2x 2.5", 1x 3.5"
Features:Built-in RGB controller, optimized airflow, easy cable management.
DIMENSIONS | Height : 464 mm (With Feet)
Width : 227 mm
Depth : 446 mm
Weight : 8.1 kg |
COMPATIBILITY & CLEARANCE | Max CPU Cooler Clearance : Up to 165mm
Max GPU Clearance : Up to 365mm
Front Radiator Clearance : 45mm
Cable Management : Up to 23mm |
FRONT I/O PORTS | USB 3.2 Gen 1 Type-A : 1
USB 3.2 Gen 2 Type-C : 1
Headset Audio Jack : 1 |
INCLUDED ACCESSORIES | Installation screws : 1
Cable ties : 10
RGB Lighting Controller:NZXT RGB Connector : 3 (Support up to 120 LEDs) |
EXPANSION SLOTS | Standard : 7 |
DRIVE BAYS | 2.5" : 1+1
3.5" : 1 |
FAN SUPPORT | Front : 2 x F Series RGB 140mm (Case Version) included
Top : 2 x 120mm
Rear : 1 x 120mm
Bottom : 1 x F Series Quiet 120mm (Case Version) included
Filters : All Air Intakes |
RADIATOR SUPPORT | Front : Up to 280mm
Top : Up to 240mm
Rear : Up to 120mm |
FAN SPECS | Model : F140 RGB Fan
Speed : 500 - 1800 RPM
Airflow : 24.85 - 89.48 CFM
Static Pressure : 0.94 - 3.39 mm-H2O
Noise : 20 - 32.5 dBA
Fan Connector : 4-pin |
FAN SPECS | Model : F120Q Airflow Fan (Case Version)
Speed : 1200 ± 240 RPM
Airflow : 62.18 CFM
Static Pressure : 1.05 mm-H2O
Noise : 25.1 dBA
Fan Connector : 3-pin |
