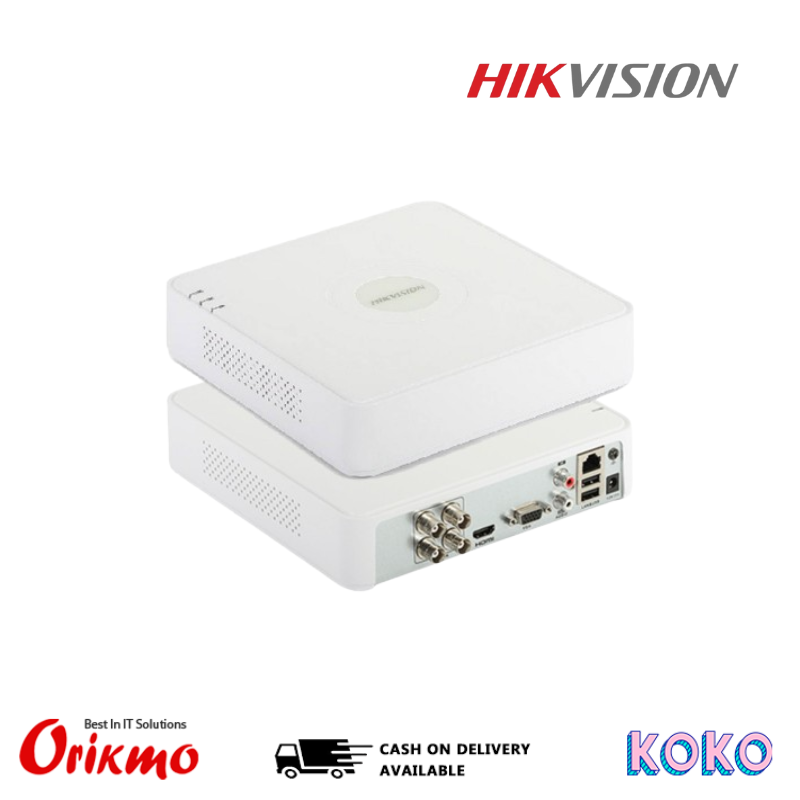

HIVISION IDS-7116HQHI-M1/S ACUSENSE DVR

Make	Hikvision
Manufacturer	Hikvision
Category	CCTV>Digital video recorders (DVRs)
Model code	iDS-7116HQHI-M1/S
Series	Hikvision Value Series DVR
Channels	16 channels
Recording Mode	Real Time / Timelapse / Event recording
Inbuilt Multiplexer	Yes
Storage Capacity GB	10,240 GB storage
Image per second (IPS)	Main Stream : 12, 15, 20, 25 (P) / 30 (N); Sub Stream : 12, 25 (P) / 30 (N) fps storage rate
Compression Type	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Resolution	1080p resolution
Signal Mode	PAL / NTSC
External Storage	USB
Recording System	HDD
Audio Recording and Properties	G.711u, 1-ch RCA (2.0 Vpp, 1 KΩ), 16-ch via coaxial cable input; 1-ch output, RCA (Linear, 1 KΩ)
IP Storage rate (fps)	Main Stream : 12, 15, 20, 25 (P) / 30 (N); Sub Stream : 12, 25 (P) / 30 (N)
Type of Multiplexer Functions	Recording, Playback
Physical Specifications	Dimensions mm: 285 x 210 x 45 Weight kg: < 1
Electrical Specifications	Voltage: 12 V DC Power Consumption: < 15 W
Environmental Specifications	Operating Temp oC: -10 ~ 55 C (14 ~ 131 F) Operating Humidity %: 10 ~ 90
Additional info	Deep learning-based motion detection 2.0 for all analogue channels Deep learning-based perimeter protection H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression HDTVI/AHD/CVI/CVBS/IP video inputs Audio via coaxial cable Up to 24-ch IP camera inputs (up to 6 MP) Up to 10 TB capacity per HDD Recording at up to 4MP lite resolution Smart search for efficient playback Support multiple VCA (Video Content Analytics) events for both analogue and smart IP cameras Support 4-ch line crossing detection and intrusion detection Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management
