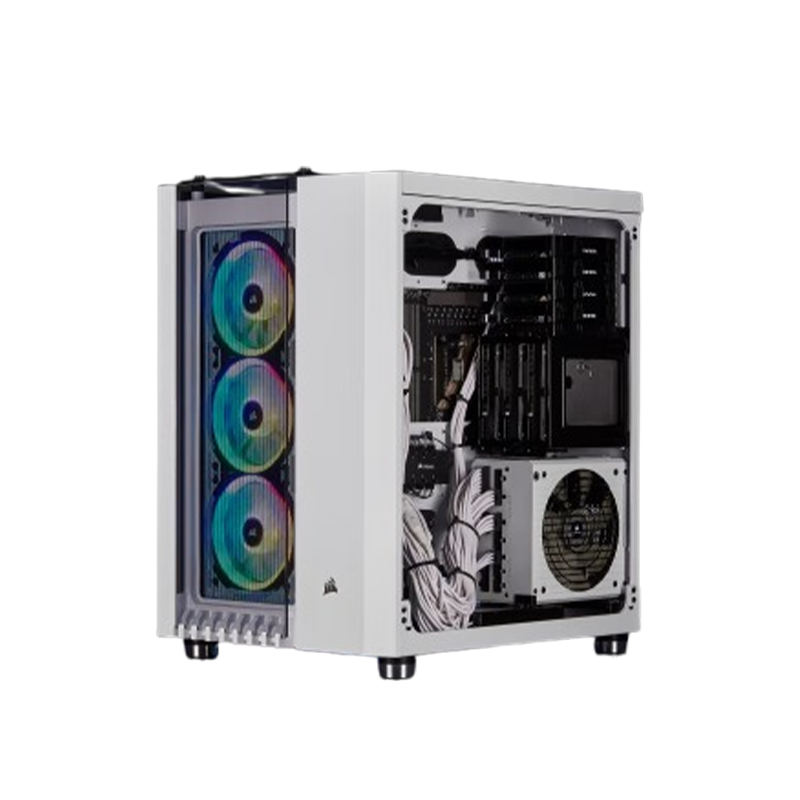

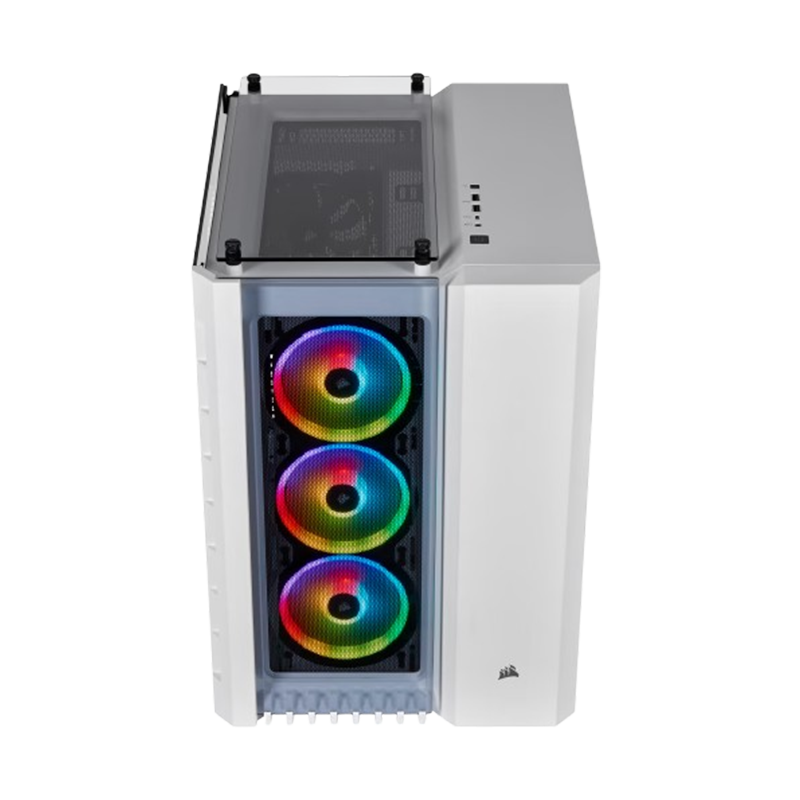

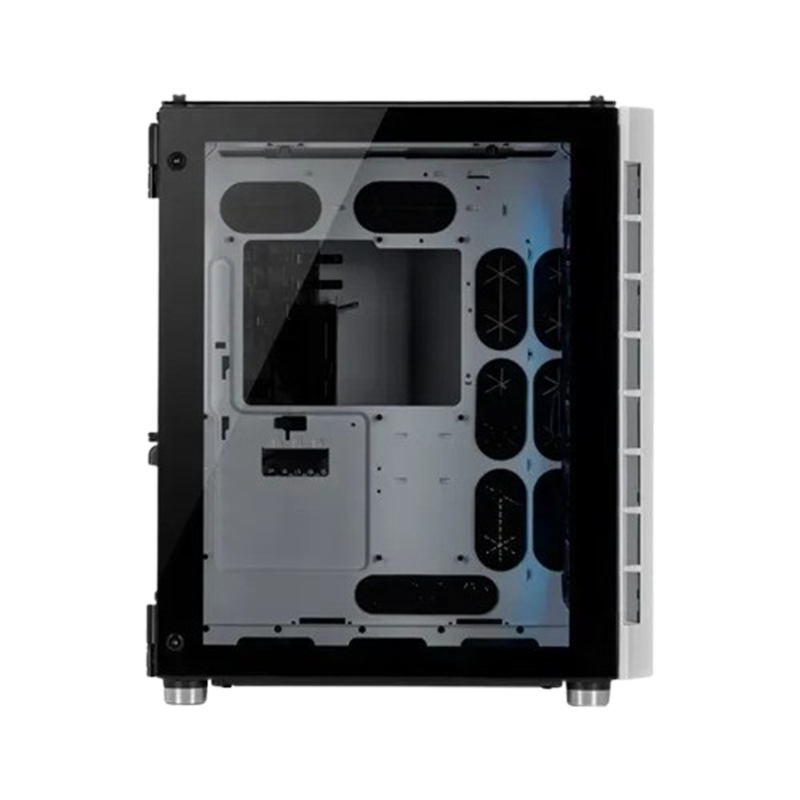

CORSAIR CRYSTAL SERIES 680X RGB TEMPERED GLASS ATX WHITE CASE CC-9011169-WW
- AVAILABILITY:
- SKU: 0001462
- CATEGORY: PC ACCESSORIES,CASING,GAMING ACCESSORIES
- Form Factor: Mid-tower ATX
- Material: Steel, tempered glass (front, side, and top panels)
- Dimensions: 518mm x 260mm x 520mm (L x W x H)
- Motherboard Support: ATX, Micro-ATX, Mini-ITX
- Cooling Support:
- Front: Up to 3x 120mm or 3x 140mm fans
- Top: Up to 2x 120mm or 2x 140mm fans
- Rear: 1x 120mm fan
- Radiator Support: Up to 360mm (front), 280mm (top), 120mm (rear)
2 YEAR WARRANTY
Form Factor: Mid-tower ATX
Material: Steel, tempered glass (front, side, and top panels)
Dimensions: 518mm x 260mm x 520mm (L x W x H)
Motherboard Support: ATX, Micro-ATX, Mini-ITX
Cooling Support:
- Front: Up to 3x 120mm or 3x 140mm fans
- Top: Up to 2x 120mm or 2x 140mm fans
- Rear: 1x 120mm fan
-
Radiator Support: Up to 360mm (front), 280mm (top), 120mm (rear)
Case Dimensions (mm) |
| 423mm x 344mm x 505mm |
|
|
|
|
|
|
Maximum GPU Length (mm) |
| 330 |
|
|
|
|
|
|
Maximum PSU Length (mm) |
| 225 |
|
|
|
|
|
|
Maximum CPU Cooler Height (mm) |
| 180 |
|
|
|
|
|
|
Expansion Slots |
| 8 horizontal + 2 vertical |
|
|
|
|
|
|
Case Drive Bays |
| (x3) 3.5in (x4) 2.5in |
|
|
|
|
|
|
Form Factor |
| MID TOWER |
|
|
|
|
|
|
Case Windowed |
| Tempered Glass |
|
|
|
|
|
|
Corsair Link Enabled |
| Yes |
|
|
|
|
|
|
Color |
| WHITE |
|
|
|
|
|
|
Case Material |
| Steel, Tempered Glass |
|
|
|
|
|
|
Radiator Compatibility |
| 120mm, 140mm, 240mm, 280mm, 360mm |
|
|
|
|
|
|
Case Front IO |
| (2x) USB 3.0, (1x) USB 3.1 Type C, (1x) Audio in/out |
|
|
|
|
|
|
Compatible Corsair Liquid Coolers |
| H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
|
|
|
|
|
|
Case Power Supply |
| ATX |
|
| |
|
|
|
Lighting |
| RGB |
|
|
|
|
|
|
Drive Bays 3.5" |
| 3 |
|
|
|
|
|
|
Drive Bays 2.5" |
| 4 |
|
|
|
|
|
|
Height (mm) |
| 505 |
|
|
|
|
|
|
Length (mm) |
| 423 |
|
|
|
|
|
|
Width (mm) |
| 344 |
