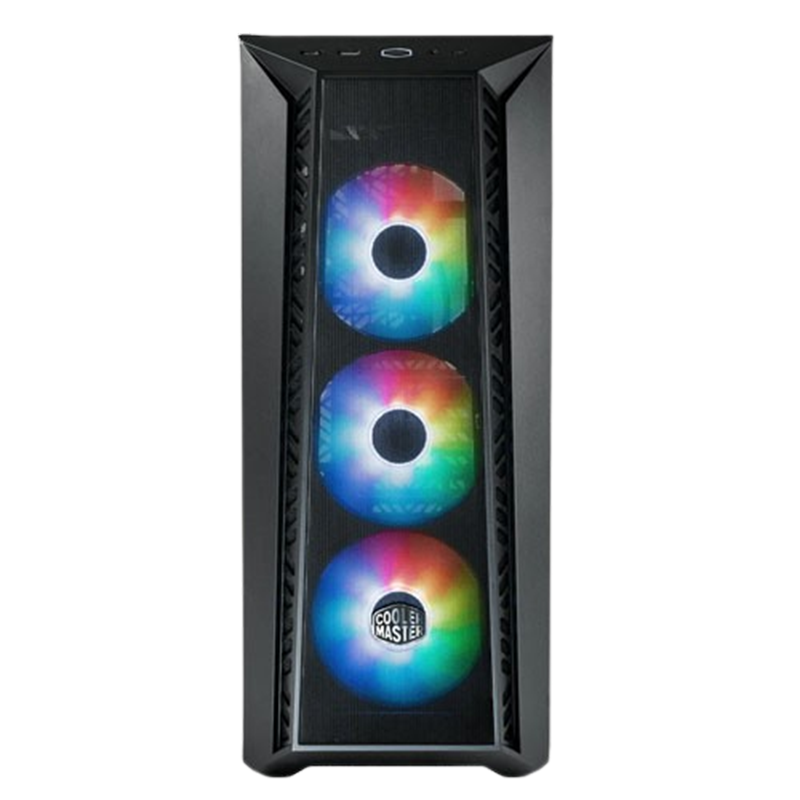

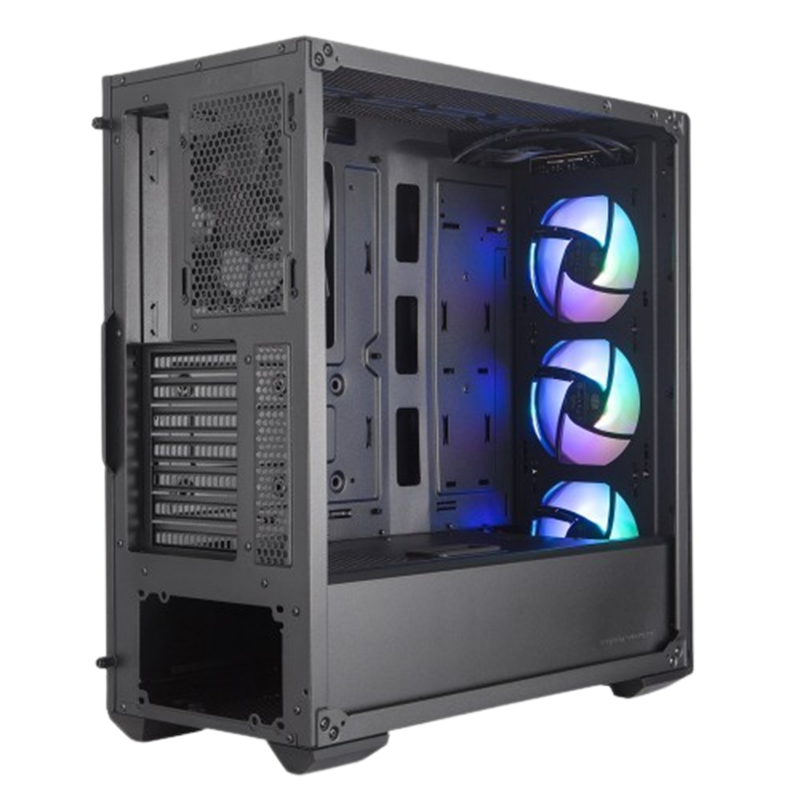

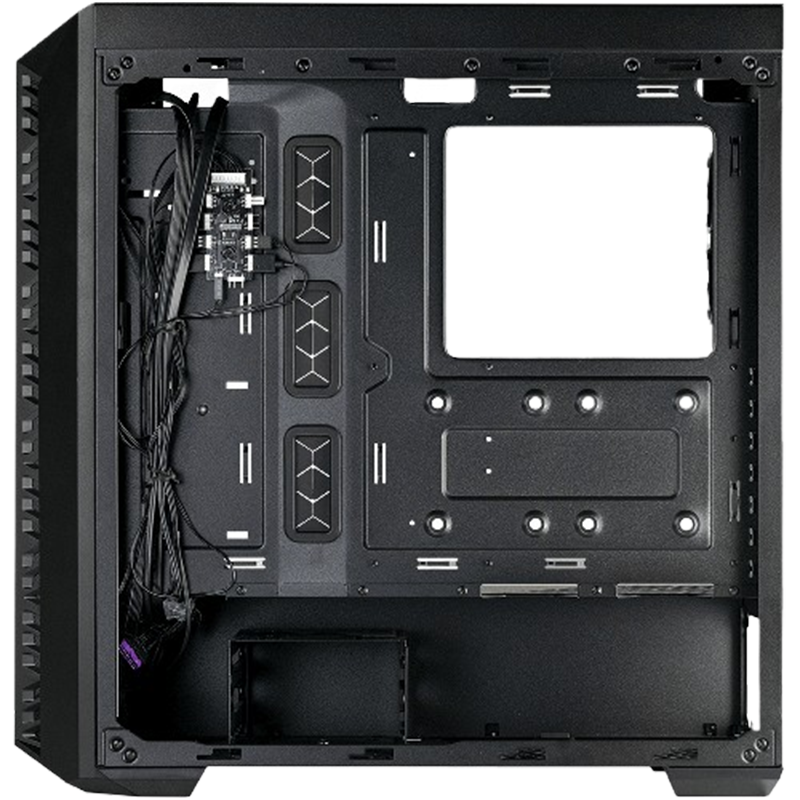

COOLER MASTER MASTERBOX 520 MESH CASE MB520-KGNN-S00
- AVAILABILITY:
- SKU: 0002350
- CATEGORY: PC ACCESSORIES,CASING,GAMING ACCESSORIES
- Form Factor: Mid Tower
- Dimensions: 473 x 210 x 469 mm (L x W x H)
- Material: Steel, Plastic, and Tempered Glass
- Motherboard Support: ATX, Micro-ATX, Mini-ITX
- Drive Bays: 2 x 3.5" HDD / 2 x 2.5" SSD
- Cooling Support:
- Front: 3 x 120mm or 2 x 140mm fans (2 x 120mm pre-installed)
- Top: 2 x 120mm fans
- Rear: 1 x 120mm fan (1 x 120mm pre-installed)
- Radiator support for liquid cooling systems
Form Factor: Mid Tower
Dimensions: 473 x 210 x 469 mm (L x W x H)
Material: Steel, Plastic, and Tempered Glass
Motherboard Support: ATX, Micro-ATX, Mini-ITX
Drive Bays: 2 x 3.5" HDD / 2 x 2.5" SSD
Cooling Support:
Front: 3 x 120mm or 2 x 140mm fans (2 x 120mm pre-installed)
Top: 2 x 120mm fans
Rear: 1 x 120mm fan (1 x 120mm pre-installed)
Radiator support for liquid cooling systems
Model NumberMasterBox 520 Mesh: MB520-KGNN-S00, MasterBox 520 Mesh White: MB520-WGNN-S00 |
Exterior ColorBlack, |
Materials - ExteriorMesh, Steel, ABS Plastic, Tempered Glass |
Materials - Left Side PanelTempered Glass |
Dimensions (L x W x H)499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size) |
Motherboard SupportMini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature) |
Expansion Slots7 |
3.5" Drive Bays2 |
2.5" Drive Bays3 |
I/O Panel - USB Ports1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C |
I/O Panel - Audio In / Out1x 3.5mm Headset Jack (Audio+Mic) |
I/O Panel - Other1x Reset/ARGB button |
Included AccessoriesARGB Fans Hub |
Pre-installed Fans - TopN/A |
Pre-installed Fans - Front3x CF120 ARGB |
Pre-installed Fans - RearN/A |
Fan Support - Top3x 120mm, 2x 140mm |
Fan Support - Front3x 120mm, 2x 140mm |
Fan Support - Rear1x 120mm |
Radiator Support - Top120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm) |
Radiator Support - Front120 / 140 / 240 / 280 / 360mm |
Radiator Support - Rear120mm |
Clearance - CPU Cooler165mm |
Clearance - PSU200mm (Recommended up to 170mm) |
Clearance - GFX410mm |
Dust FiltersFront, Top, Bottom |
Power Supply SupportATX |
SizeMid Tower |
SeriesMasterBox Series |
Back Connector Motherboard SupportNo |
