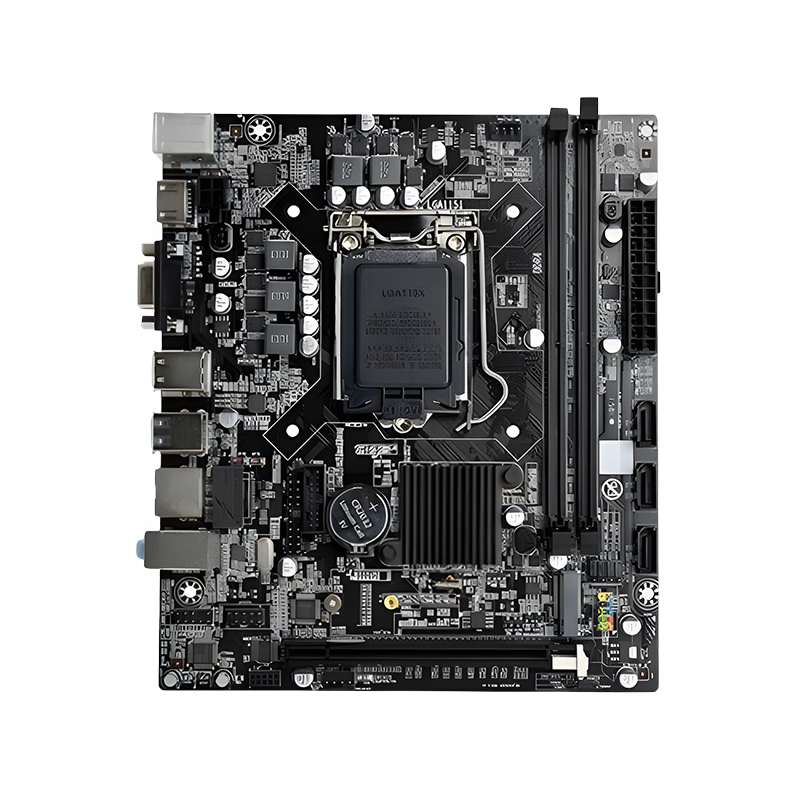

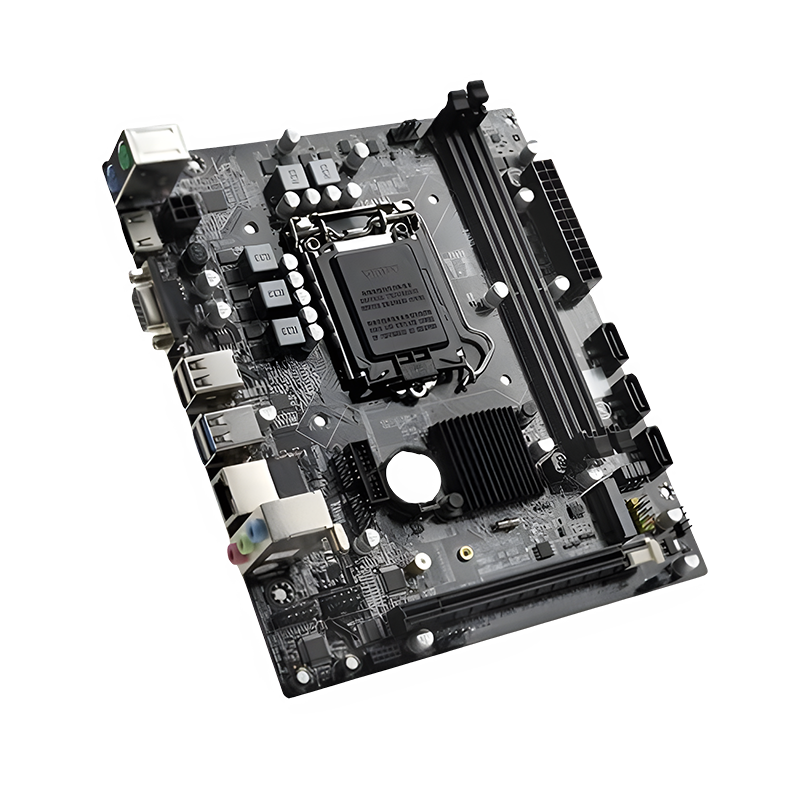

ARKTEK AK- H310M EG DDR4 MOTHERBOARD
- AVAILABILITY:
- SKU: 2483
- CATEGORY: PC ACCESSORIES,MOTHERBOARDS
Rs. 20,550.00Rs. 20,000.00
- Socket: LGA 1151 (Intel 8th/9th gen CPUs)
- Chipset: Intel H310
- Memory: Dual-channel DDR4, up to 2666 MHz, 2 DIMM slots, max 32GB
- Storage: 3x SATA 3.0, 1x M.2 slot
- Graphics: Integrated Intel UHD Graphics 630
- Network: 1x Gigabit Ethernet
- Audio: 6-channel audio
- Expansion slots: 1x PCI-E x16, 1x PCI-E x1
- Form factor: Micro-ATX (19.7x17 cm)
1 YEAR WARRANTY
CPU Support: Intel® socket 1151, support Intel i3/i5/i7series CPU
Chipset: Intel H310 Chipset
On-Board Graphics: Integrated Graphics Processor-Intel® HD Graphics support
Memory: Dual Channel DDR4 2133/2400/2666/3200MHz (Max. Supports up to 16GB Memory)
DIMM: 2 x Memory Slots
LAN: Onboard Realtek® RTL8111e 1000LAN
Audio: Chip integrated by Realtek 662 on board, Supports 6-channel audio-out
SATA: 3 x SATA 3.0 port, 1 x M.2
Internal I/O:
2 x USB 2.0 header supports additional 4 USB 2.0 ports
1 x USB 3.0 header supports additional 2 USB 3.0 ports
1 x Front Panel Audio header
Expansion Slots: 1 x PCI Express x16 slot
Form Factor: Micro-ATX (19.7 x 17 cm)
OS Support: Support Windows 7 / 8 / 8.1 / 10(x64)
Mounting: 6 mounting holes
| CPU Support | Intel® socket 1151,support Intel i3/i5/i7series CPU |
| Chipset | Intel H310 Chipset |
| On-Board Graphics | Integrated Graphics Processor-Intel® HD Graphics support |
| Memory | Dual Channel DDR4 2133/2400/2666/3200MHz (Max. Supports up to 16GB Memory) |
| DIMM | 2 x Memory Slots |
| LAN | On board Realtek® RTL8111e 1000Mbps adaptive network card interface |
| Audio | Chip integrated by Realtek 662 on board, Supports 6-channel audio-out |
| SATA | 3 x SATA 3.0 port, 1 x M.2 |
| Real I/O | 1 x PS/2 mouse port 1 x PS/2 keyboard port 1 x VGA port 1 x HDMI port 2 x USB 2.0 port 2 x USB 3.0 port 1 x LAN jack 3 x Audio jack |
| Internal I/O | 2 x USB 2.0 header supports additional 4 USB 2.0 ports 1 x USB 3.0 header supports additional 2 USB 3.0 ports 1 x Front Panel Audio header |
| Expansion Slots | 1 x PCI Express x16 slot |
| Form Factor | Micro-ATX (19.7 x 17 cm) |
| OS Support | Support Windows 7 / 8 / 8.1 / 10(x64) |
| Mounting | 6 mounting holes |
| Accessories | 1 x SATA cable 1 x I/O Backboard 1 x User Manual 1 x Driver CD |
